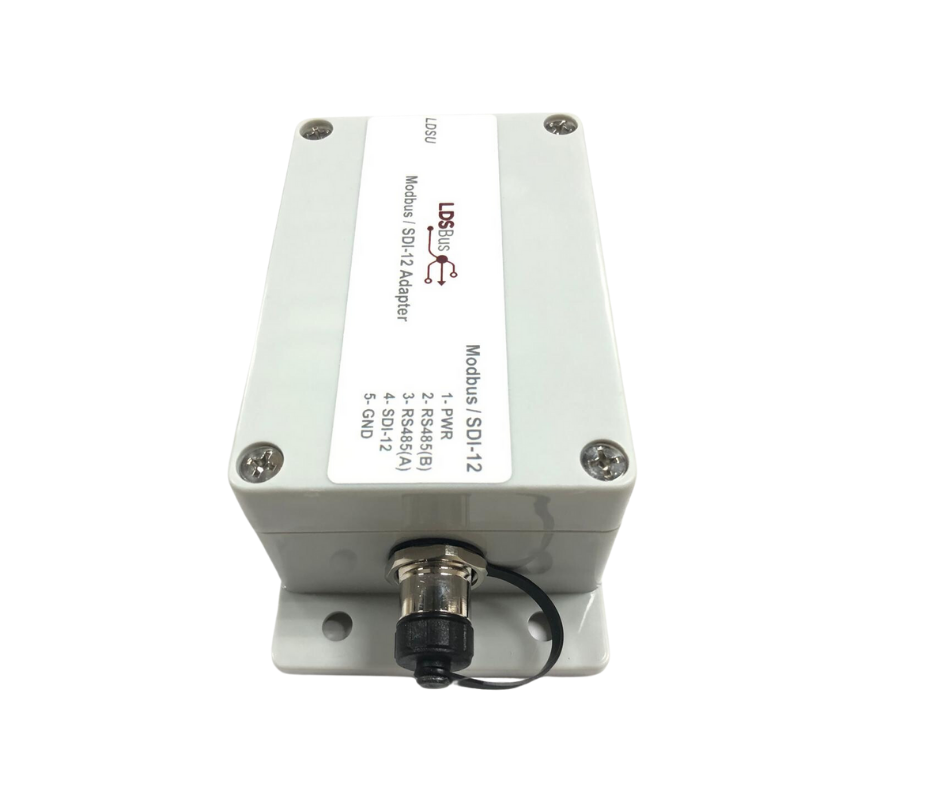

Modbus/SDI-12 Adapter

Sku: LA-1401-01A

Sku:

The LDSBus Modbus/SDI-12 Adapter converts the Modbus-RTU device and SDI-12 device standard protocols (Sensors/Actuators) into LDSBus protocol.

It serves as a data and power interface between the LDSBus host and Modbus / SDI-12 devices. The LDSBus Modbus / SDI-12 Adapter output voltage is programmable based on the connected device operation voltage.

USD 90.00

Protocols

LDSBus
ModBus

Clear

Specification

Specifications	Details
Features	LDSU Interface – RS485 Modbus Interface – Modbus-RTU, Default 9600 bps (Configurable from 1200 bps to 115200 bps) SDI-12 Interface – SDI-12 (Version 1.3/Version 1.4) Fixed 1200 bps Mounting – Flush Mount
Power	Operating Power – Typ:310mW; Max:388mW Modbus Interface Voltage – Configurable as 9V/12V/24VDC output SDI-12 Interface Voltage – 12VDC output (fixed) Voltage Output Tolerance – +/- 10% Max Output Power – 9VDC Voltage Output – Max: 600mW / 12VDC Voltage Output – Max: 600mW / 24VDC Voltage Output – Max: 500mW Short Circuit Protection – Yes
Physical Characteristics	Colour – Light Gray Housing – ABS Dimensions – L132.0mm x W68.6mm x H50.0mm
Environmental Limits	Operating Temperature – 0 to 70°C Storage Temperature – -20 to 85°C Ambient Relative Humidity – 5 to 95% (non-condensing) Ingress Protection – Waterproof, Dustproof
Package Contents	Device – 1xLDSBus Modbus/SDI-12 Adapter Cable Assembly – 1x LDSBus M12 4-Pin Male-Male Cable (5m)
