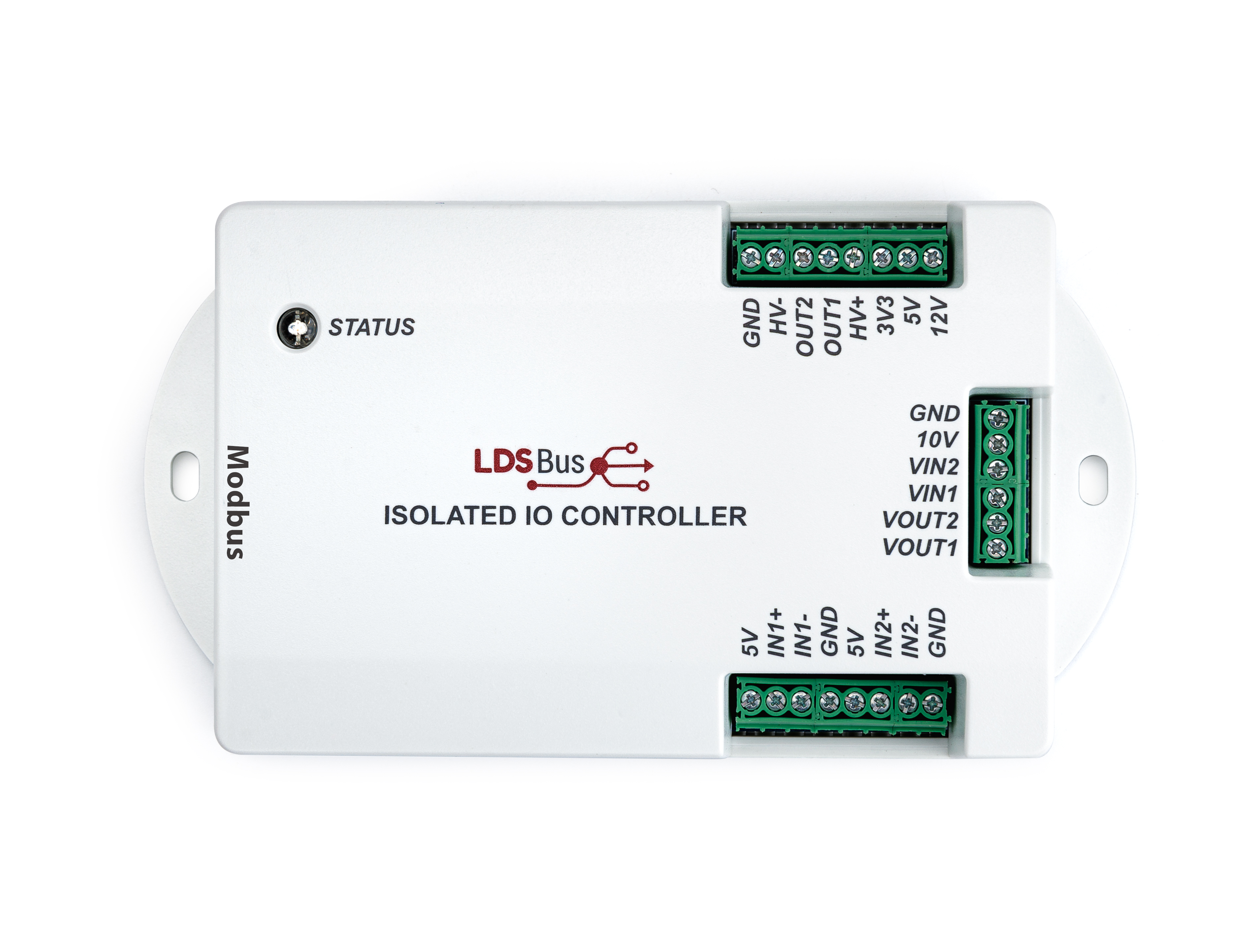

Isolated IO Controller

Sku: LC-0601-01A

Sku: MC-0601-01A

The LDSBus Isolated IO Controller offers 2 isolated digital inputs, 2 isolated digital outputs, 2 isolated analogue inputs and 2 isolated analogue outputs.

It also offers a variety of power source options to achieve 3.3V, 5V, 10V, 12V referenced signals besides sourcing power from external voltage sources. Each channel (input and output) is isolated from the rest.

Each digital output can switch between 0V and 3.3V, 5V, 12V or referenced to an external voltage source. Each digital input can be between 0V and 1.8V to 12V. A 5V voltage source is provided for common applications that switch between 0-5V.

Each analogue output can produce a voltage between 0-10V and each analogue input supports voltage or current controlled input sources ranging between 0-10V.

The controller may be used in numerous and diverse applications such as simple IO control, or 0-10V dimmers, weather station, water level detector or sensor.

This guide has details of different types of 3rd Party Compatible Probes which can be used.

The Modbus Isolated IO Controller offers 2 isolated digital inputs, 2 isolated digital outputs, 2 isolated analogue inputs and 2 isolated analogue outputs.

Each analogue output can produce a voltage between 0-10V and each analogue input supports voltage or current controlled input sources ranging between 0-10V.

The controller may be used in numerous and diverse applications such as simple IO control, or 0-10V dimmers, weather station, water level detector or sensor.

This guide has details of different types of 3rd Party Compatible Probes which can be used.

USD 72.00 – USD 82.00

Variations

ModBus
LDSBus

Clear

Quantity:

Isolated IO Controller quantity

Add To Cart

Specification

Specification	Details
Features	Interface – RS485 System Status Indicator – 1x RGB LED Mounting – Flush Mount, DIN Rail Mount
Power	Input Voltage – 5V DC Bus Power Power (Typ) – 1.15W Power (Max) – 1.20W Output Power – 3.3V/30mW; 5V/50mW; 10V/400mW; 12V/240mW
Analog Input	Number of Channels – 2 Analog Input range – 0V to 10V Analog Input resolution – 10mV Analog Input Accuracy – Typical: +/- 3%; for 0V-1V, Accuracy: +/- 10mV (typical)
Analog Output	Number of Channels – 2 Analog Output range – 0V – 10V Analog Output resolution – 10mV Analog Output Accuracy – Typical: +/- 3%; for 0V-1V, Accuracy: +/- 10mV (typical)
Digital IO Input	Number of Channels – 2 Digital Input Voltage – 1.8VDC – 12VDC (refer to external power voltage)
Digital IO Output	Number of Channels – 2 Digital Output Voltage – 1.8VDC – 12VDC (refer to external power voltage)
Physical Characteristics	Color – White Housing – Polycarbonate Dimensions – L138.2mm x W76mm x H31.9mm
Environmental Limits	Operating Temperature – 0 °C to 55 °C Storage Temperature – -20 °C to 85 °C Ambient Relative Humidity – 5 to 95% (non-condensing)
Package Contents	Device – 1x LDSBus Isolated IO Controller Wire Assembly – 1X 5m RJ11 Cable
Optional	Mounting Accessories – 1x LDSBus DIN Rail Mount set

Specification	Details
Features	Interface – RS485 System Status Indicator – 1x RGB LED Mounting – Flush Mount, DIN Rail Mount
Power	Input Voltage – 5V DC Bus Power Power (Typ) – 1.15W Power (Max) – 1.20W Output Power – 3.3V/30mW; 5V/50mW; 10V/400mW; 12V/240mW
Analog Input	Number of Channels – 2 Analog Input range – 0V to 10V Analog Input resolution – 10mV Analog Input Accuracy – Typical: +/- 3%; for 0V-1V, Accuracy: +/- 10mV (typical)
Analog Output	Number of Channels – 2 Analog Output range – 0V – 10V Analog Output resolution – 10mV Analog Output Accuracy – Typical: +/- 3%; for 0V-1V, Accuracy: +/- 10mV (typical)
Digital IO Input	Number of Channels – 2 Digital Input Voltage – 1.8VDC – 12VDC (refer to external power voltage)
Digital IO Output	Number of Channels – 2 Digital Output Voltage – 1.8VDC – 12VDC (refer to external power voltage)
Physical Characteristics	Color – White Housing – Polycarbonate Dimensions – L138.2mm x W76mm x H31.9mm
Environmental Limits	Operating Temperature – 0 °C to 55 °C Storage Temperature – -20 °C to 85 °C Ambient Relative Humidity – 5 to 95% (non-condensing)
Package Contents	Device – 1x LDSBus Isolated IO Controller Wire Assembly – 1X 5m RJ11 Cable
Optional	Mounting Accessories – 1x LDSBus DIN Rail Mount set
