Name: IR Blaster - BRT Systems Pte Ltd
Price: 22.00 USD
Availability: InStock

aaaaaa

IR Blaster

Sku: LC-0201-01A

Sku: MC-0201

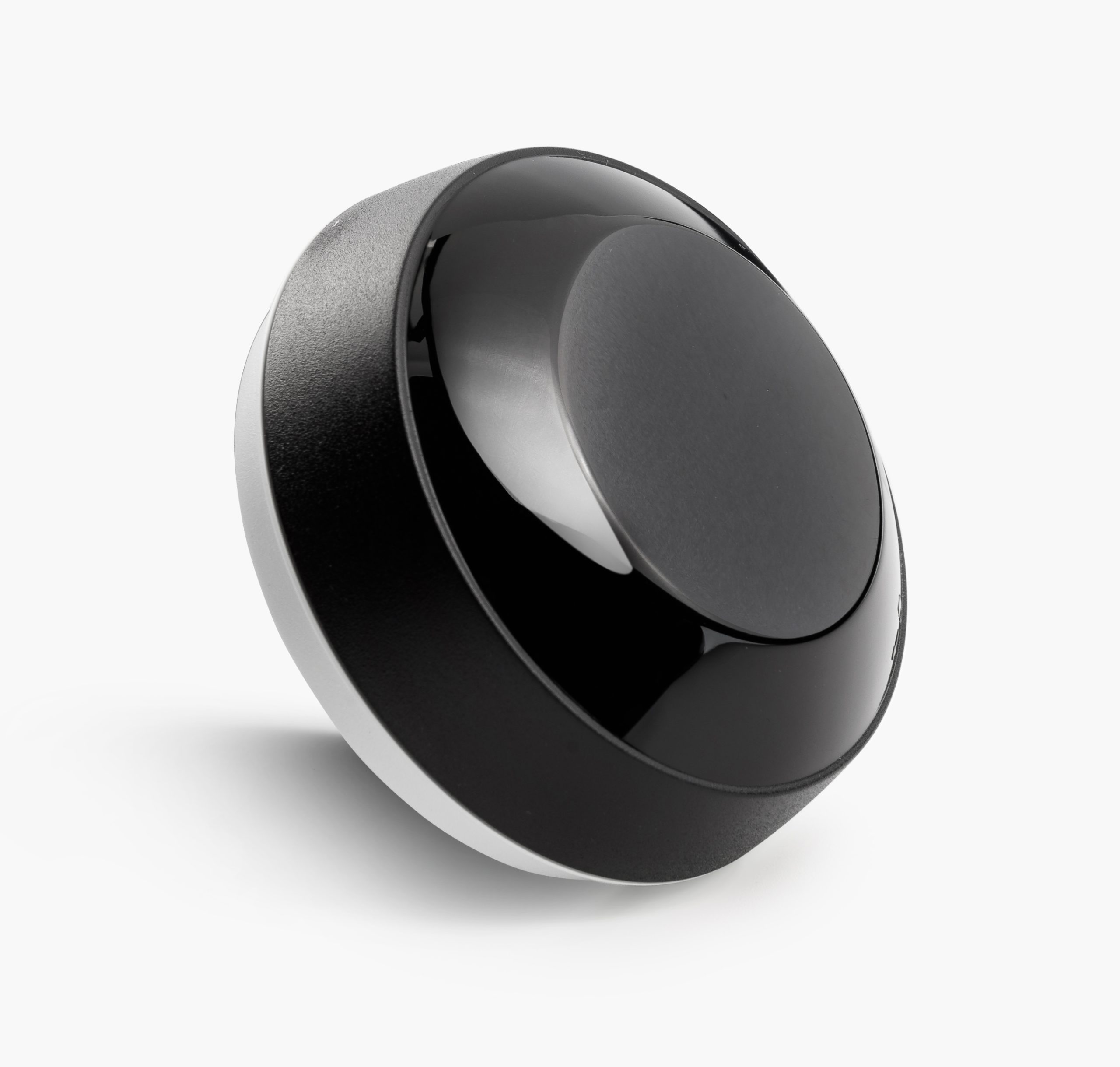

The LDSBus IR Blaster replaces traditional single device IR remote controllers to function as a universal remote controller.

It is equipped with 7 high power IR LEDs that provide 360° of coverage ranging up to 7 meters.

Suitable for controlling Air-conditioners, TVs, Set-Top Boxes, curtains and blinds, fans and many more appliances.

USD 22.00

Protocols

Clear

Specifications	Details
Features	Blaster – IR Emitter Interface – RS485 Communication Method – LDSBus LED Indicator (RGB) – System Status Indicator Fixed Angle Installation (Flush Mount); Adjustable Angle Installation (Swivel Mount)
Power	Input Voltage – 5V DC Bus Power Typical Power – 620mW Max. Power – 1150mW
IR Emitter	Range – 7 Meters (Maximum) Angle – 360°
Physical Characteristics	Color – White Housing – Polycarbonate Dimensions – 62mm x H25mm (Flush), 62mm x H60mm (Swivel)
Environmental Limits	Operating Temperature – 0°C to 70°C Storage Temperature – -20°C to 85°C Ambient Relative Humidity – 5 to 95% (non-condensing)

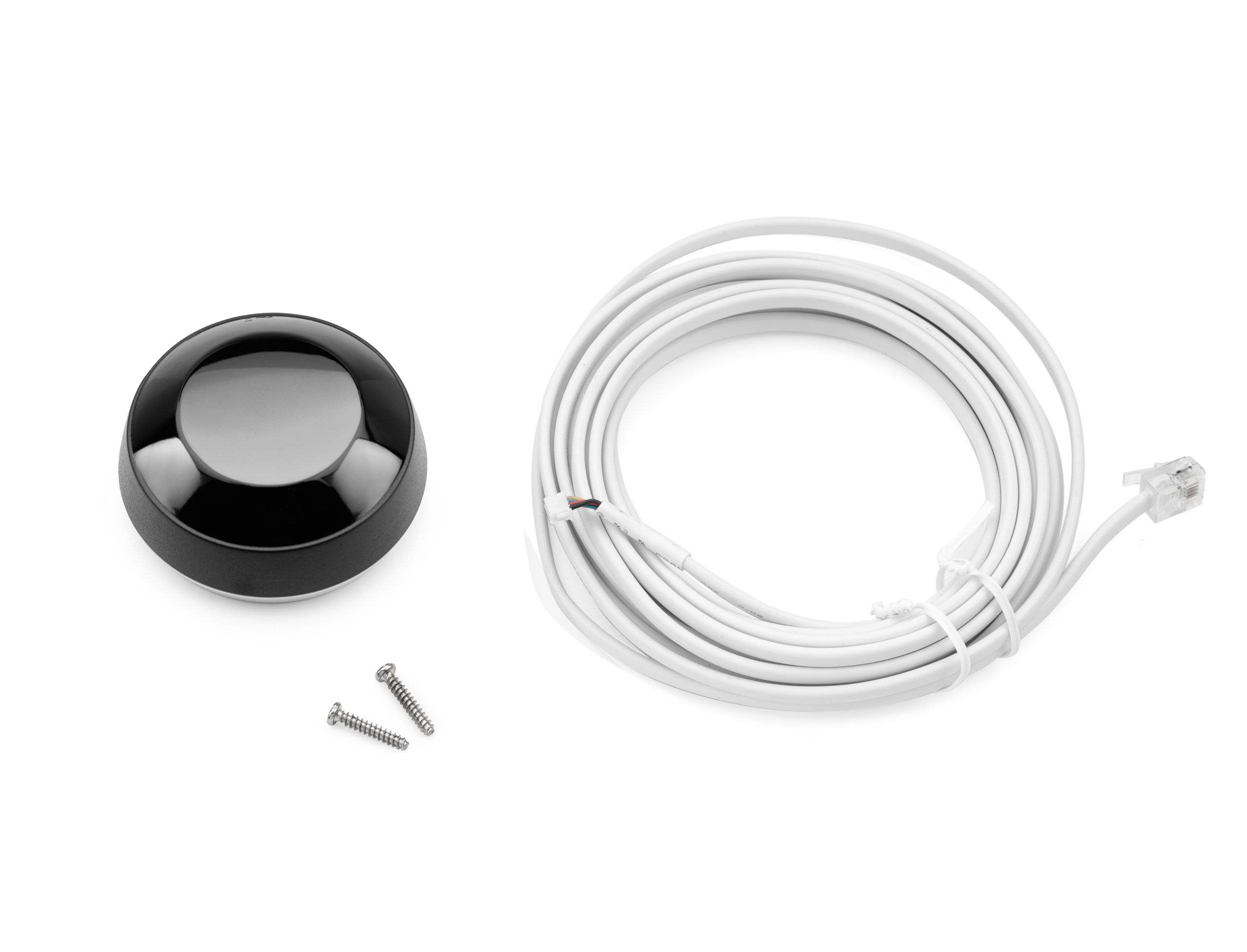

Package Contents	Device – 1X LDSBus IR Blaster with Flush Mount (or) 1X LDSBus IR Blaster with Swivel Mount Wire Assembly – 1X 5m RJ11-JST Cable Self-Tapping Screws – 2X M3*16mm (Thread)
