| Features |

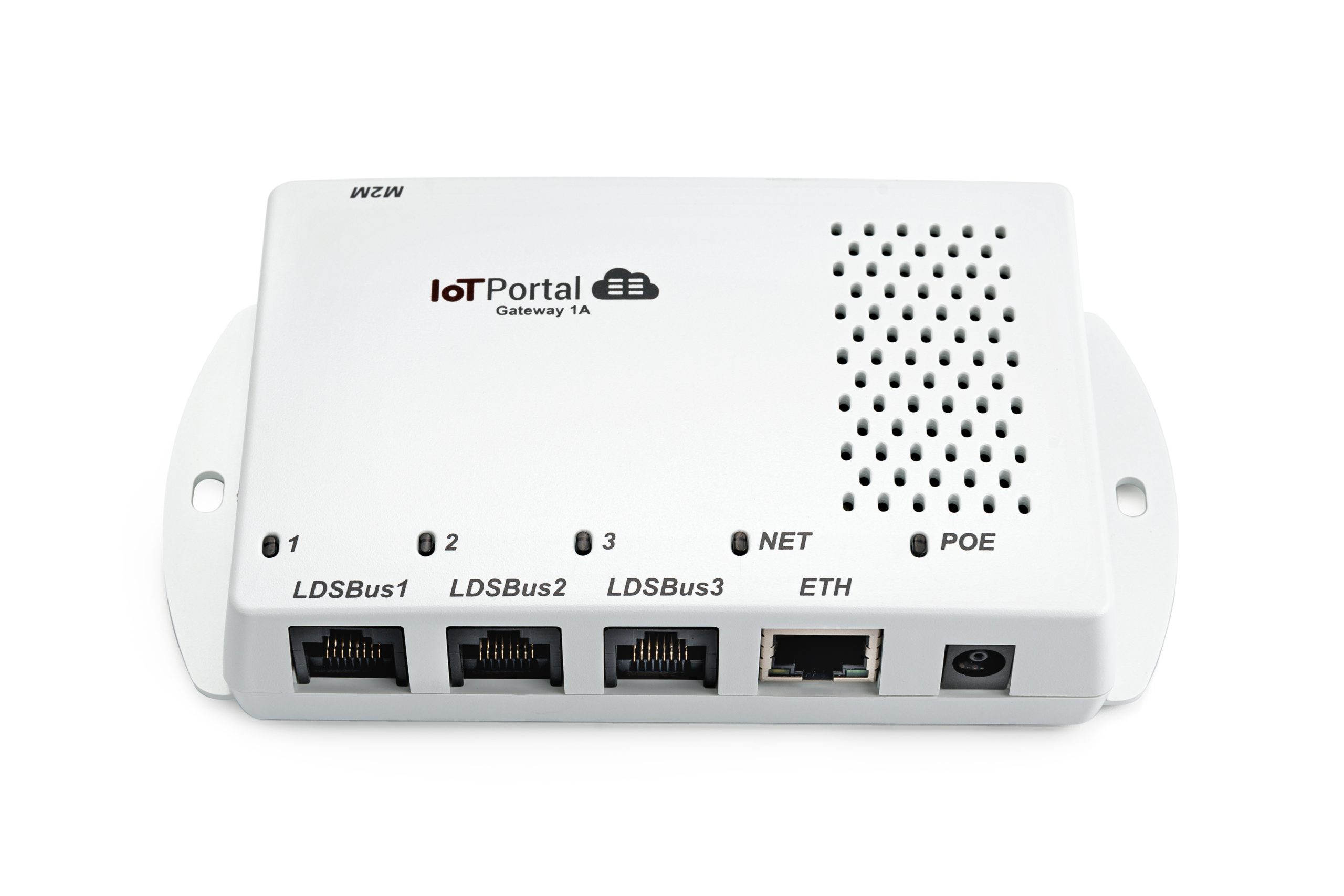

- LDS Bus Interface – 3x RJ45 ports (RS485)
- Power Indicator – lx Dual-color LED, Red (POE af), Orange (POE at, DC Input)
- Sensor – Built in Temperature Sensors
- Battery – CR1225 3V/52mAh, 5-Year Life cycles
- Factory Reset – Yes, Multi-function
|

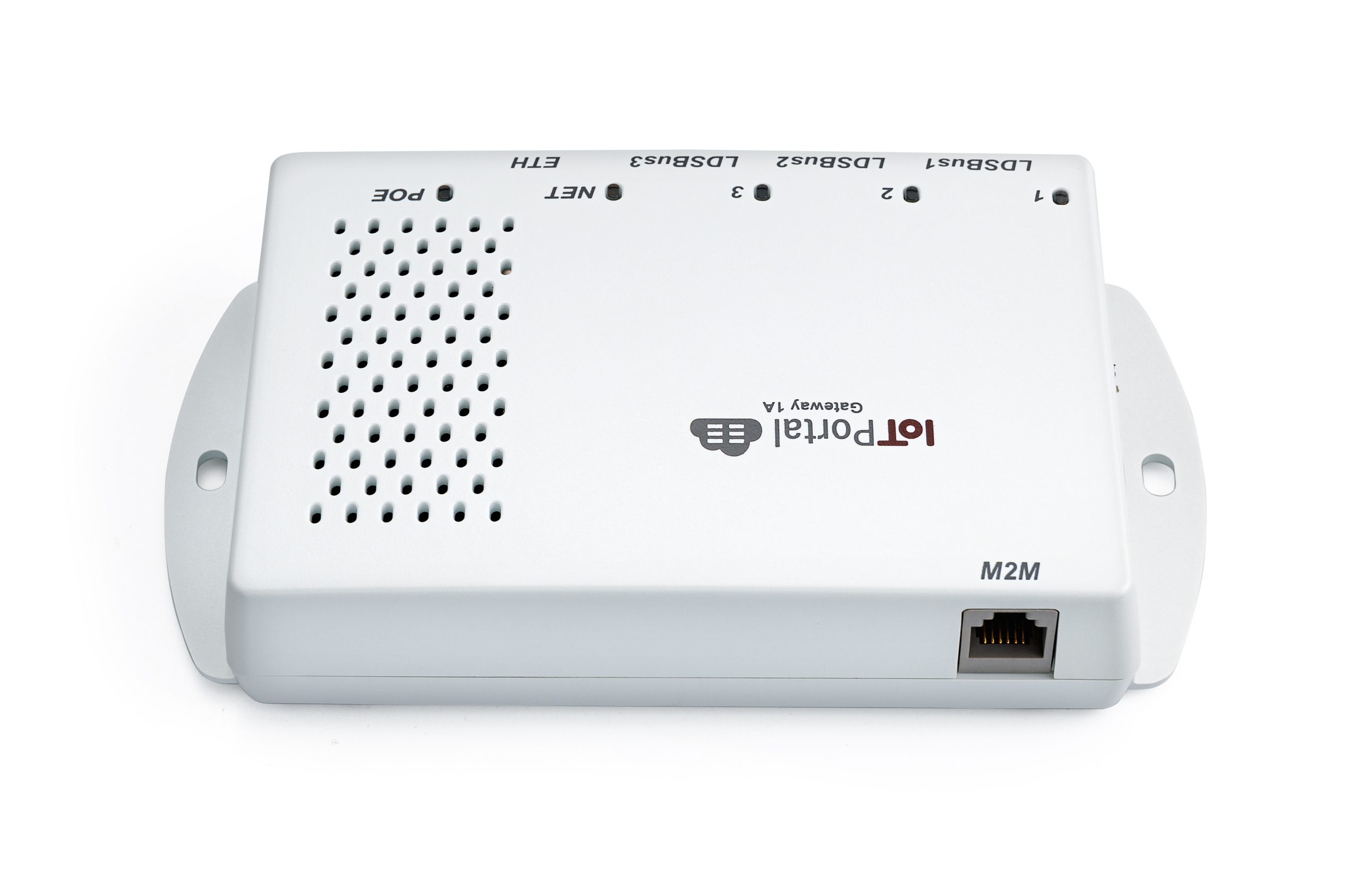

- Machine-to-Machine Interface – 1x RJ12 port (UART)
- Network Indicator – 1x RGB LED
- LDSBus Port Indicator – 3x Red LEDs
- Real time Clock (RTC) – Yes
- Hardware Reset – Yes
|
| Power |
- Input – POE Gateway – PSE: IEEE802.3af standards IEEE802.3at standards, PSU Gateway – 24VDC / 65W
- Power Consumption – POE Gateway – Max. 20W, PSU Gateway – Max. 40W
|
- Output – POE Gateway, IEEE802.3af – 24VDC, Max. 400mA / 9.6W, IEEE802.3at – 24VDC, Max. 600mA/ 14.4W PSU Gateway – 24VDC, Max. 1500mA / 36
|
| Connectivity |
- LDSBus Devices – BRTSys’s LDS Bus Protocol
|
- Internet Cloud – Wi-Fi: IEEE802.11 b/g/n (802.11n up to 150 Mbps), Frequency: 2.4 GHz ~ 2.5 GHz, Antenna: On Board Antenna, Ethernet: 10/100BASE-TX Ethernet Port, Auto-negotiation
|
| Physical Characteristics |
- Colour – White
- Dimensions (mm) – 148.8(L) X 81.0(W) X 31.9(H)
|
- Housing – Polycarbonate
- Weight – POE Gateway – 154 grams, PSU Gateway – 140 grams
|
| Environmental Limits |
- Operating Temperature – POE Gateway – 0 to +55°C, PSU Gateway – 0 to +40°C
|
- Storage Temperature – -20 to +85°C
- Ambient Relative Humidity – 5 to 95% (non-condensing)
|
| Standards & Certifications |
- EMC (FCC/CE) – EN 55032:2015+AC:2016 Class B, BS EN 55032:2015+AC:2016 Class B, EN IEC 61000-3-2:2019 Class A, BS EN IEC 61000-3-2:2019 Class A, EN IEC 61000-3-3:2013+A1:2019, BS EN IEC61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, BS EN55024:2010+A1:2015, EN 55035:2017+A11:2020, BS EN 55035:2017+A11:2020, FCC CFR Title 47, PART 15, Subpart B, Class B
|
- Radio Equipment Directive (RED) & Safety (LVD) – EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, IEC 62368-1:2014, EN 62368-1:2014 +A11:2017
- RF (FCC/CE) – EN 300 328 V2.2.2, EN IEC 62311:2020, FCC PART 15, Subpart C (15.247)
|
| Package Contents |
- POE Version – 1x IoTPortal Gateway
|
- PSU Version – 1x IoTPortal Gateway, 1x Power Adapter
|
| Optional |
- Mounting Accessories – 1x LDSBus DIN Rail Mount set (LA120101A)
|
