Sensors

Name: 4in1 sensor - BRT Systems Pte Ltd
Price: 79.00 USD
Availability: InStock

aaaaaa

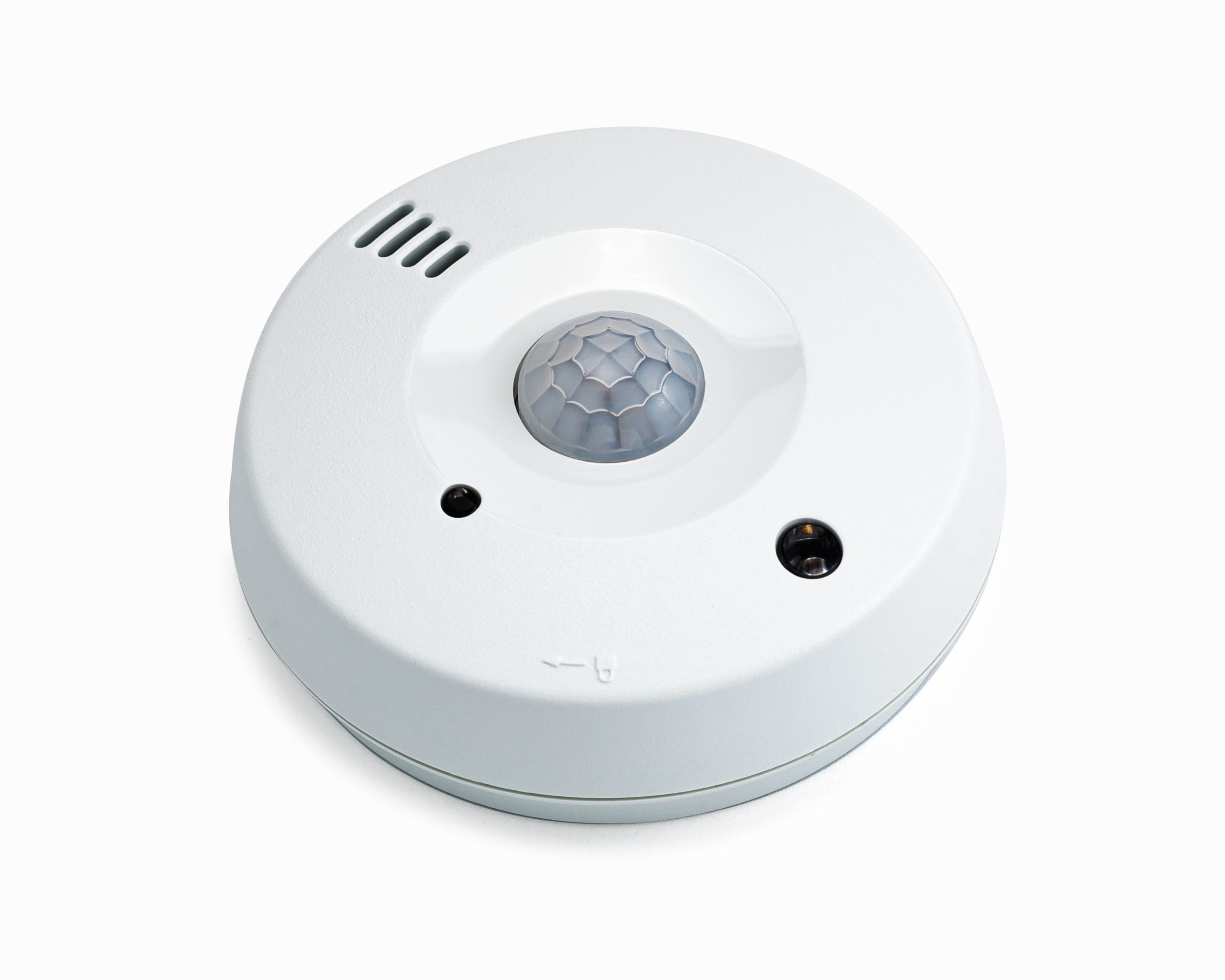

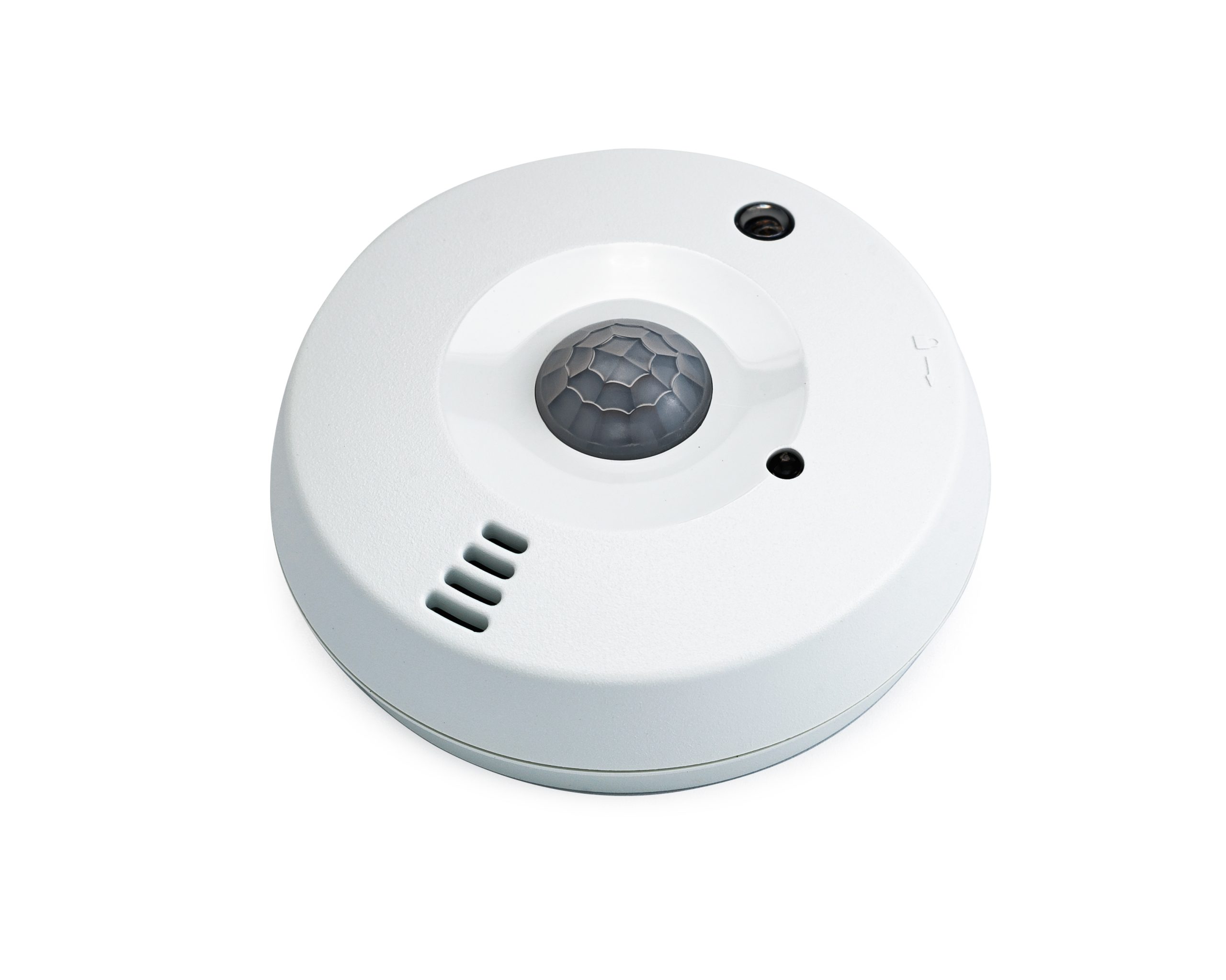

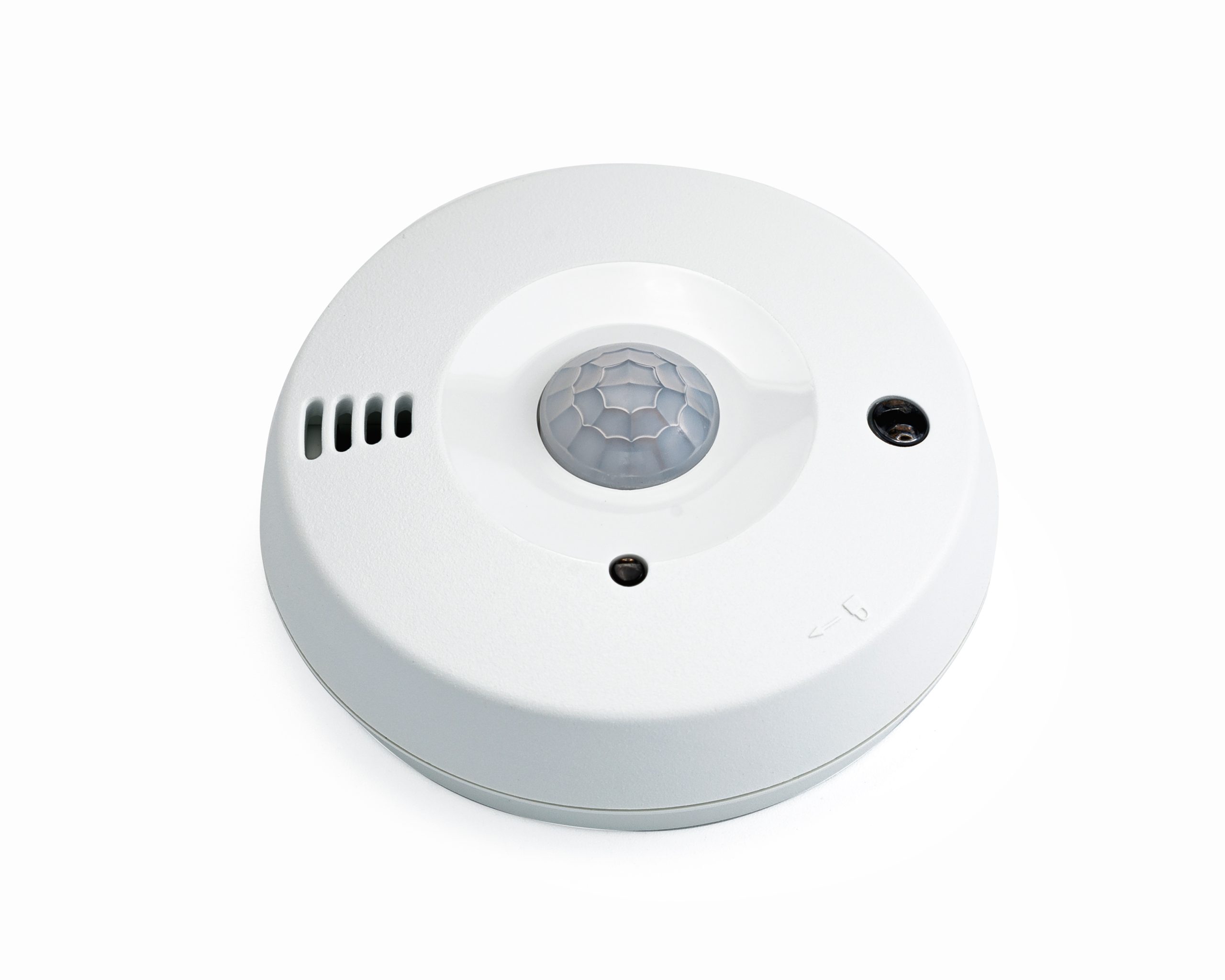

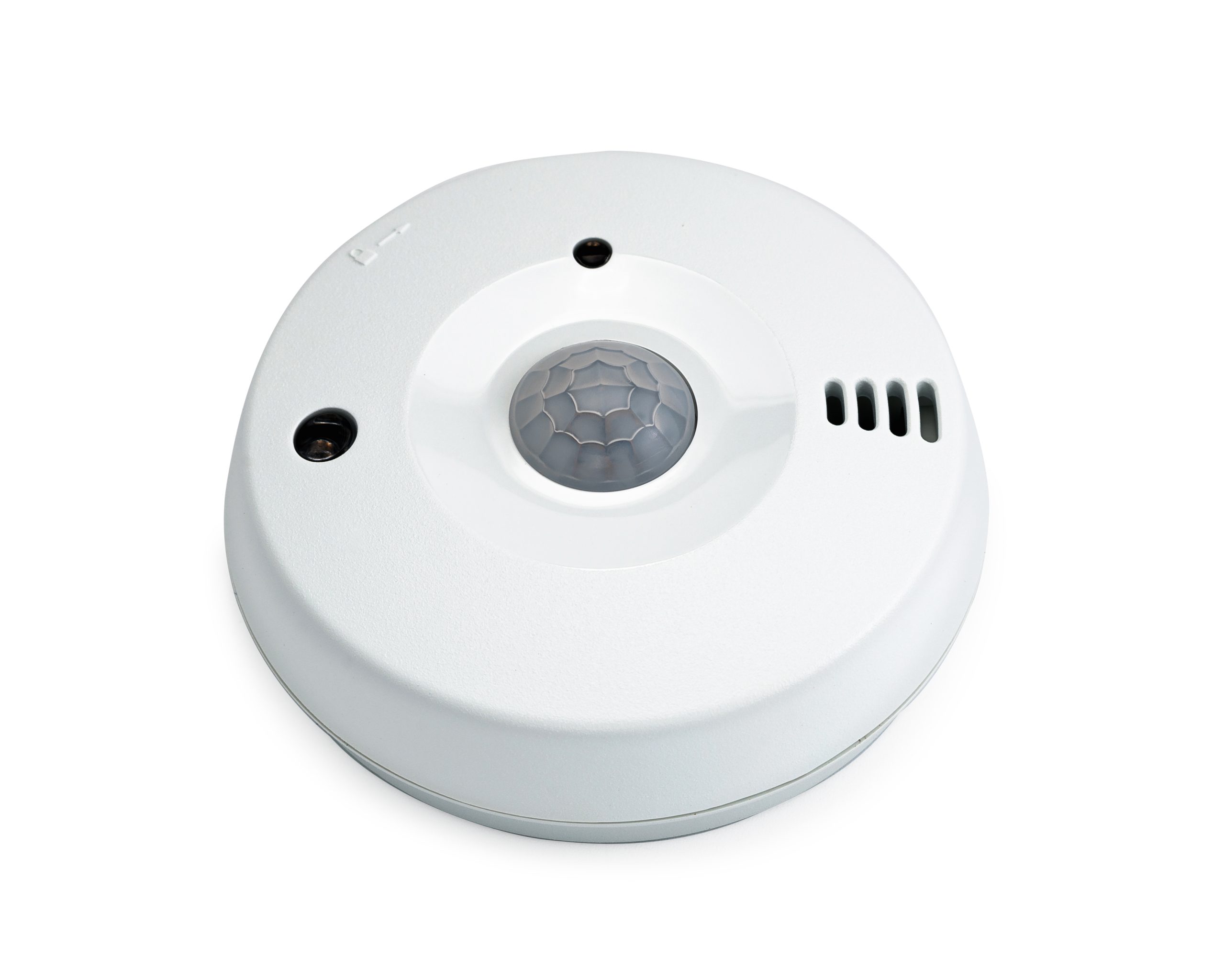

4in1 sensor

Sku: LS-0101-01A

Sku: MS-0101

USD 79.00

Protocols

LDSBus
ModBus

Clear

Specification

Documents

Solutions

Fish Tank Monitor

Home

Office Conference Room

Office

Co-working Space

Library

Vertical Farming

Aquaculture

Car Park

Hydroponics

Data Centre

First Name *

Last Name *

Email address *

Password *

Confirm Password *

Phone (optional)

Country *

I’ve read and accept the terms & conditions *

Specifications	Details
Features	Sensors – PIR, Ambient Light, Temperature, Humidity Interface – RS485 LED Indicator – System Status Indicator Mounting – Flush (Fixed Angle Installation), Swivel (Adjustable Angle Installation)
Power	Input Voltage – 5V DC Bus Power Max. Power – 180mW
PIR Sensor	Detection Range (Swivel) – < or equals to 7 Meters (3 motion sensitivity levels – 3m,5m, 7m) Max Install Height (Flush) – 3 Meters Motion Angle – 102.6 ° Motion re-trigger Interval – 0 to 255 seconds (Time lapse for motion to be reported again)
Ambient Light Sensor	Range – 0 to 64000 Lux
Temperature Sensor	Range – 0 °C to 70 °C Accuracy – +/- 0.2 °C Resolution – 0.1 °C
Humidity Sensor	Range – 0 to 95% RH Accuracy – +/- 2% RH
Physical Characteristics	Color – White Housing – Polycarbonate Dimensions – Flush (62mm x H25mm) or Swivel (62mm x H60mm)
Environmental Limits	Operating Temperature – 0 °C to 70 °C Storage Temperature – -20 °C to 85 °C Ambient Relative Humidity – 5 to 95% (non-condensing)
Package Contents	Device – 1X LDSBus 4in1 Sensor with Flush Mount (or) 1X LDSBus 4in1 Sensor with Swivel Mount Wire Assembly – 1X 5m RJ12-JST Cable Self-Tapping Screws – 2XM3*16mm (Thread) 1X Quick Start Guide

Specifications	Details
Features	Sensors – PIR, Ambient Light, Temperature, Humidity Interface – RS485 Modbus RTU LED Indicator – System Status Indicator Mounting – Flush (Fixed Angle Installation), Swivel (Adjustable Angle Installation)
Power	Input Voltage – 5V DC Bus Power Max. Power – 180mW
PIR Sensor	Detection Range (Swivel) – < or equals to 7 Meters (3 motion sensitivity levels – 3m,5m, 7m) Max Install Height (Flush) – 3 Meters Motion Angle – 102.6 ° Motion re-trigger Interval – 0 to 255 seconds (Time lapse for motion to be reported again)
Ambient Light Sensor	Range – 0 to 64000 Lux
Temperature Sensor	Range – 0 °C to 70 °C Accuracy – +/- 0.2 °C Resolution – 0.1 °C
Humidity Sensor	Range – 0 to 95% RH Accuracy – +/- 2% RH
Physical Characteristics	Color – White Housing – Polycarbonate Dimensions – Flush (62mm x H25mm) or Swivel (62mm x H60mm)
Environmental Limits	Operating Temperature – 0 °C to 70 °C Storage Temperature – -20 °C to 85 °C Ambient Relative Humidity – 5 to 95% (non-condensing)
Package Contents	Device – 1X Modbus 4in1 Sensor with Flush Mount (or) 1X Modbus 4in1 Sensor with Swivel Mount Wire Assembly – 1X Modbus RS485-JST Cable (30cm) Self-Tapping Screws – 2XM3*16mm (Thread)
