Name: IoTPortal Gateway (PSU) - BRT Systems Pte Ltd
Price: 250.00 USD
Availability: InStock

aaaaaa

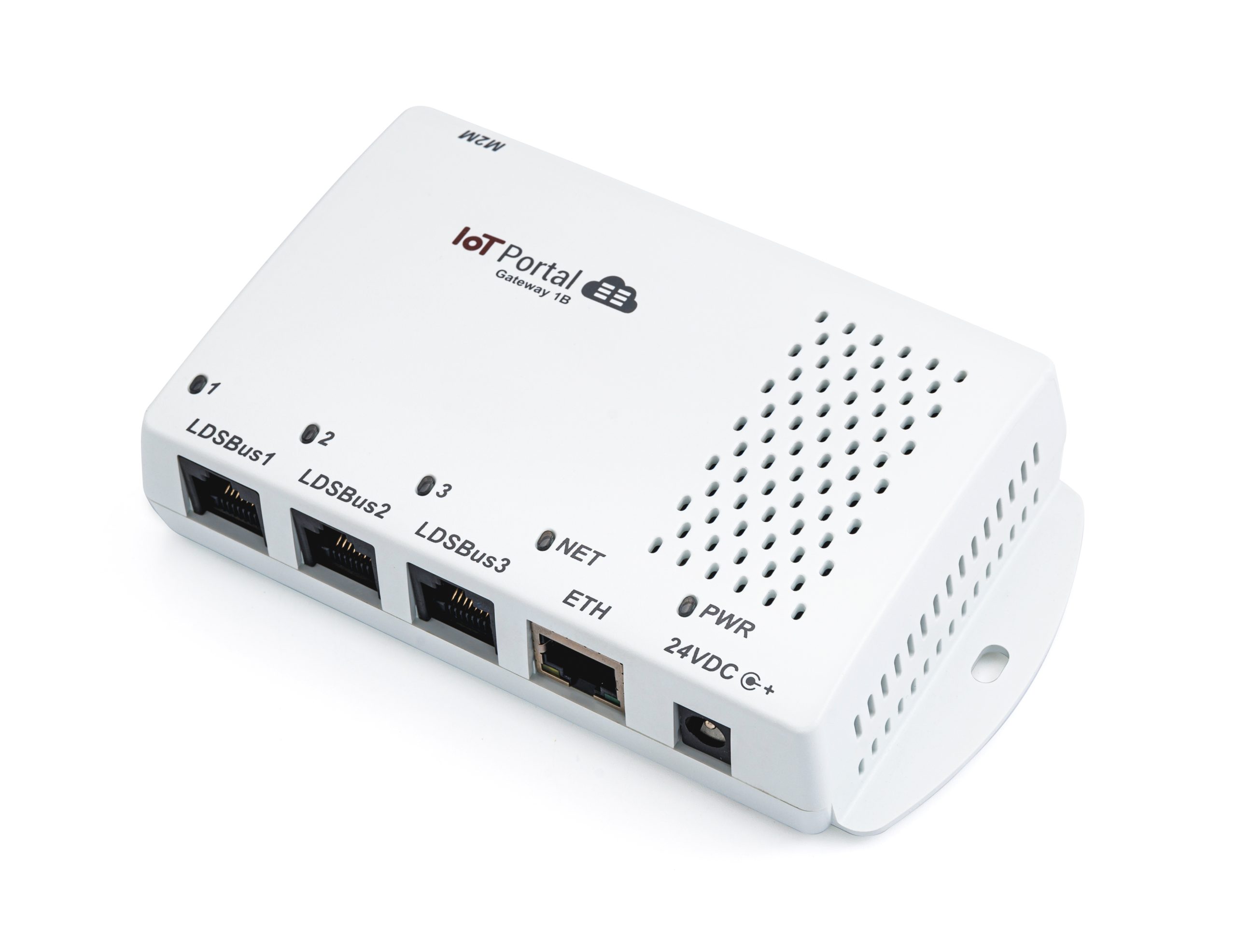

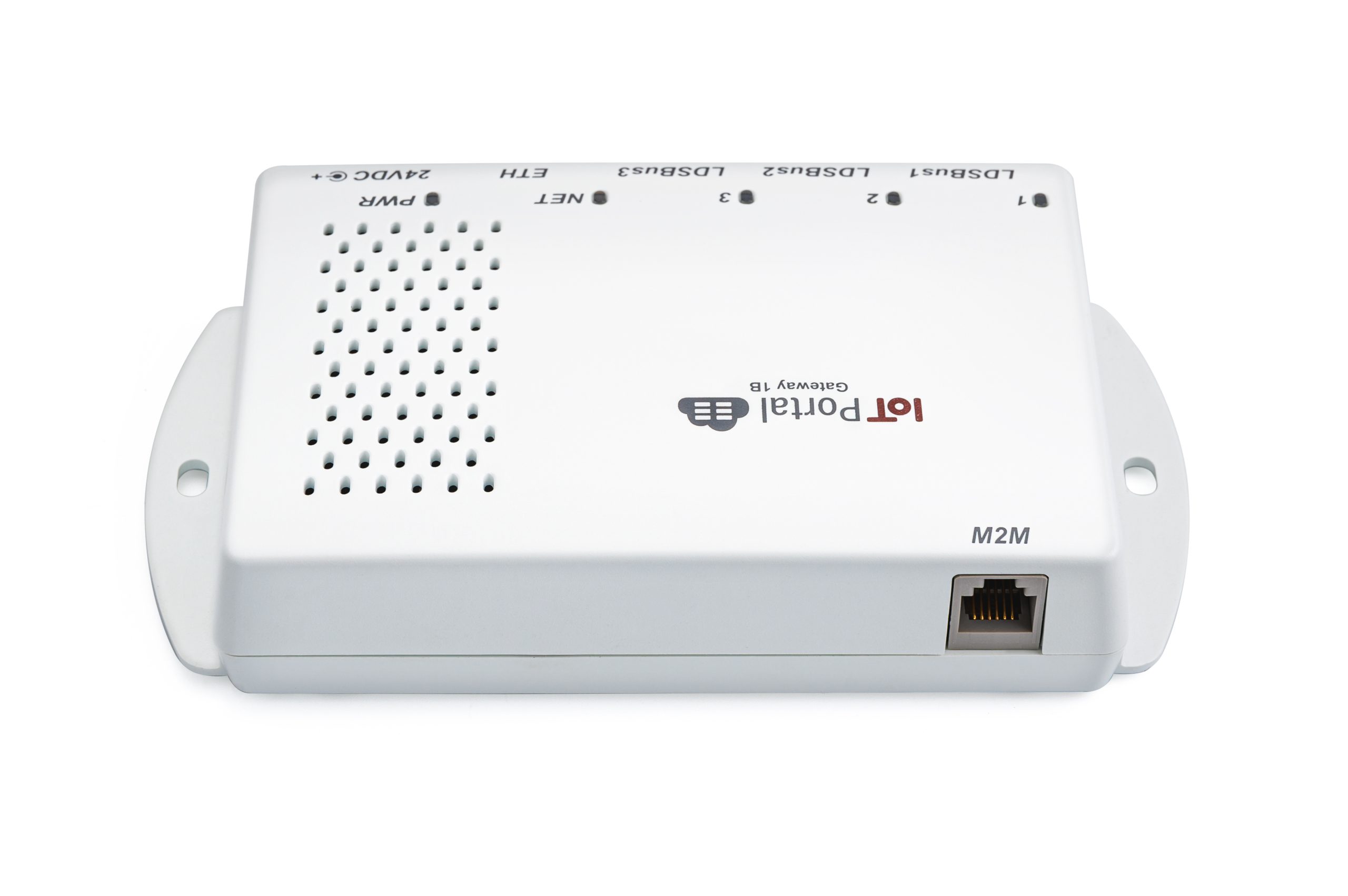

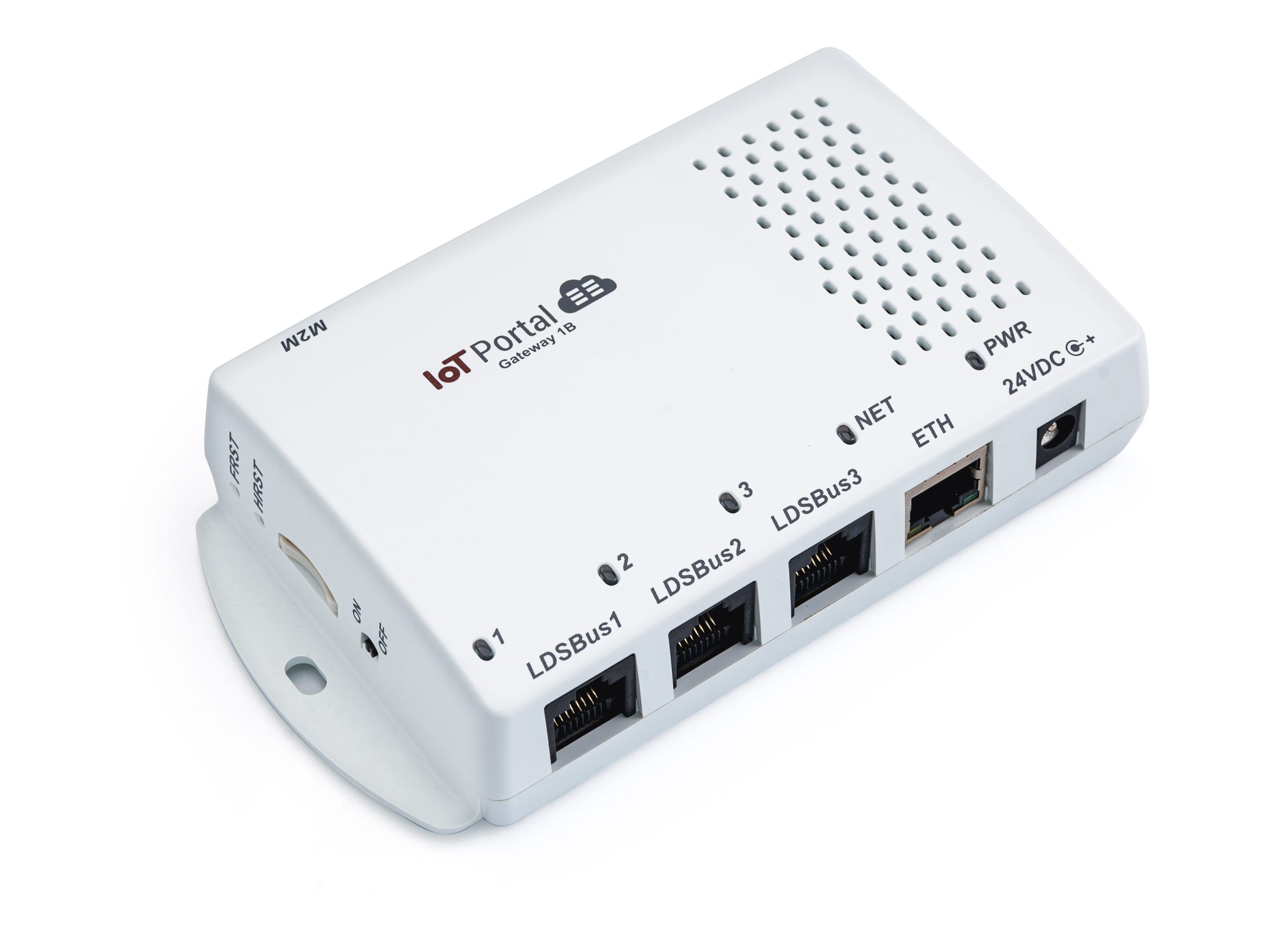

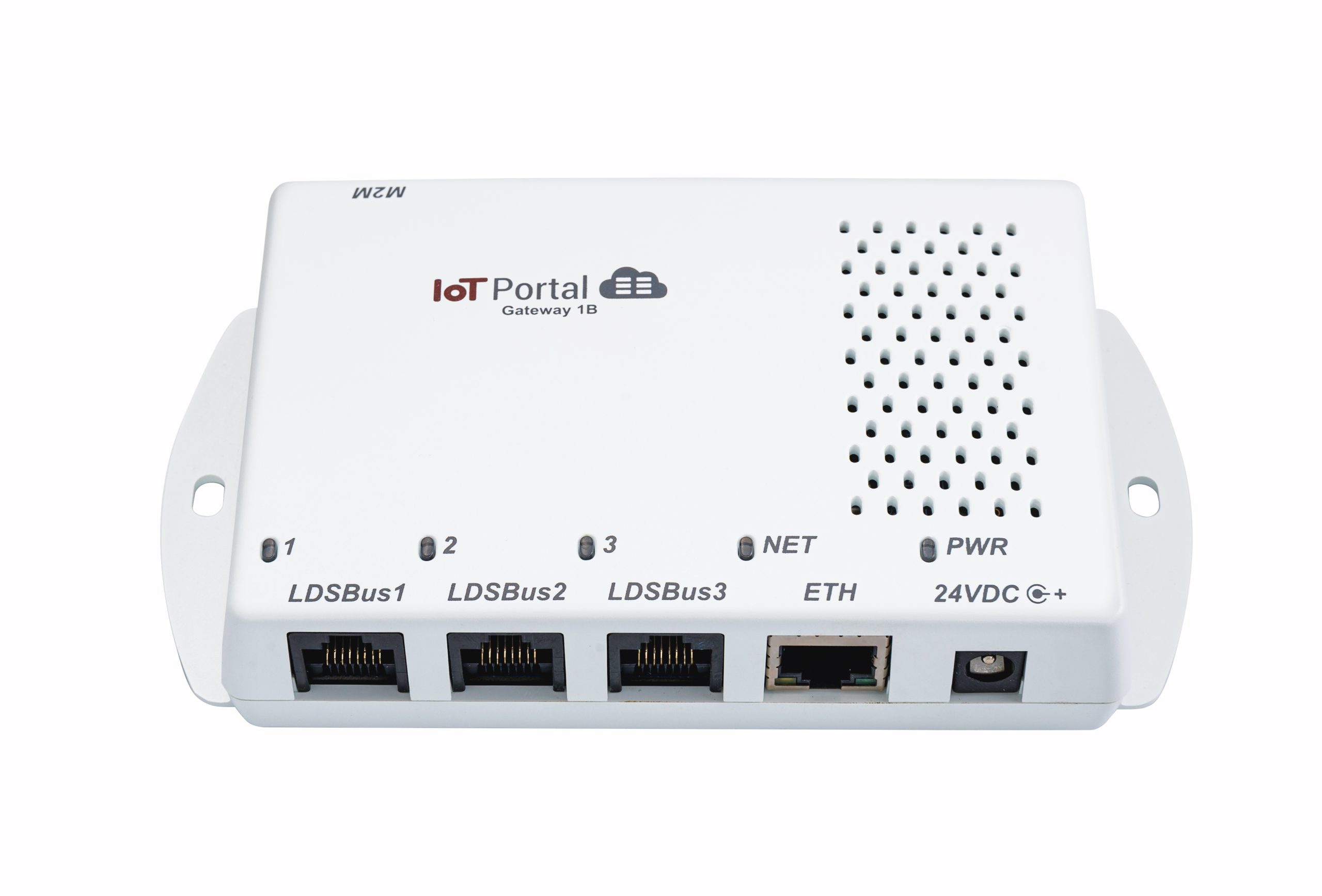

IoTPortal Gateway (PSU)

Sku: LG-0112-01A

The IoTPortal Gateway allows a wide variety of LDSBus protocol based LDSBus Devices (sensors/actuators) to communicate with BRTSys IoTPortal Cloud services without the need for a PC.

USD 250.00

Variations

LDSBus

Clear

Specification

Specification	Details
Features	LDS Bus Interface – 3x RJ45 ports (RS485) Power Indicator – 1x Dual-color LED, Red (POE af), Orange (POE at, DC Input) Sensor – Built in Temperature Sensors Battery – CR1225 3V/52mAh, 5-Year Life cycles Factory Reset – Yes, Multi-function	Machine-to-Machine Interface – 1x RJ12 port (UART) Network Indicator – 1x RGB LED LDSBus Port Indicator – 3x Red LEDs Real time Clock (RTC) – Yes Hardware Reset – Yes
Power	Input – POE Gateway – PSE: IEEE802.3af standards IEEE802.3at standards, PSU Gateway – 24VDC / 65W Power Consumption – POE Gateway – Max. 20W, PSU Gateway – Max. 40W	Output – POE Gateway, IEEE802.3af – 24VDC, Max. 400mA / 9.6W, IEEE802.3at – 24VDC, Max. 600mA/ 14.4W PSU Gateway – 24VDC, Max. 1500mA / 36
Connectivity	LDSBus Devices – BRTSys’s LDSBus Protocol	Internet Cloud – Wi-Fi: IEEE802.11 b/g/n (802.11n up to 150 Mbps), Frequency: 2.4 GHz ~ 2.5 GHz, Antenna: On Board Antenna, Ethernet: 10/100BASE-TX Ethernet Port, Auto-negotiation
Physical Characteristics	Colour – White Dimensions (mm) – 148.8(L) X 81.0(W) X 31.9(H)	Housing – Polycarbonate Weight – POE Gateway – 154 grams, PSU Gateway – 140 grams
Environmental Limits	Operating Temperature – POE Gateway – 0 to +55°C, PSU Gateway – 0 to +40°C	Storage Temperature – -20 to +85°C Ambient Relative Humidity – 5 to 95% (non-condensing)
Standards & Certifications	EMC (FCC/CE) – EN 55032:2015+AC:2016 Class B, BS EN 55032:2015+AC:2016 Class B, EN IEC 61000-3-2:2019 Class A, BS EN IEC 61000-3-2:2019 Class A, EN IEC 61000-3-3:2013+A1:2019, BS EN IEC61000-3-3:2013+A1:2019, EN 55024:2010+A1:2015, BS EN55024:2010+A1:2015, EN 55035:2017+A11:2020, BS EN 55035:2017+A11:2020, FCC CFR Title 47, PART 15, Subpart B, Class B	Radio Equipment Directive (RED) & Safety (LVD) – EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, IEC 62368-1:2014, EN 62368-1:2014 +A11:2017 RF (FCC/CE) – EN 300 328 V2.2.2, EN IEC 62311:2020, FCC PART 15, Subpart C (15.247)
Package Contents	POE Version – 1x IoTPortal Gateway	PSU Version – 1x IoTPortal Gateway, 1x Power Adapter
Optional	Mounting Accessories – 1x LDSBus DIN Rail Mount set

Documents

Datasheet

IoTPortal Gateway Datasheet

Release Date: Sep 4, 2024

View

Application Notes / Installation Guides / User Guides

Introduction	Release Date: Aug 12, 2024	View
Portal Web Application (WMC)	Release Date: Aug 12, 2024	View
Android Mobile Application	Release Date: Aug 12, 2024	View
iOS Mobile Application	Release Date: Sep 16, 2024	View
